Tech Ref Manual

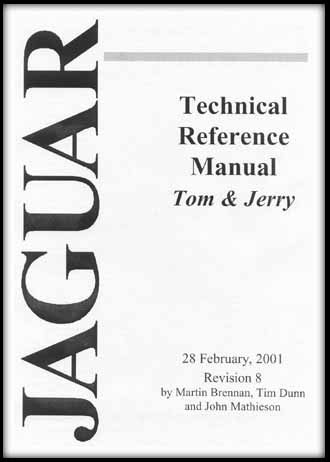

Pictured here is the title page for the Jaguar Technical Reference Manual - Version # 8. As you might have noticed, it's dated 28 February 2001!

John Mathieson was very nice to update and release this to the Jaguar community for all to read and enjoy.

This manual get's into all the technical details on the Jaguar chipset. The manual is in Adobe Acrobat format and is 141 pages.

Click on the picture to view/download the PDF file.
